High Performance Imppinj R2000 Chip Uhf Rfid Reader 840-960mhz for Sport Timing System
1. Description:

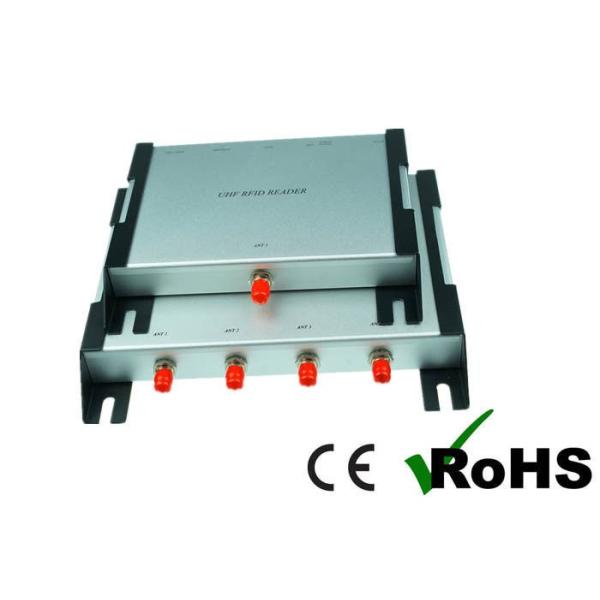

F5860-H is a four port UHF RFID fixed reader, which embeds the M2240 module. Its communication interfaces can be USB, RS485, RS232, and 100M Ethernet, etc.. It has four TNC antennae interfaces, with a protection level of IP64. Aluminium alloy of the whole body makes this reader more rugged and durable as well as the excellent heat dissipation capability, antijamming capability and lightning-proof ability.
F5860-H is suitable for RFID intensive and more challenging environment and required a higher reading/writing performance, such as warehousing, logistics, production line management, etc..
This product is suitable for RFID intensive and more challenging environment and required a higher reading/writing performance, such as warehousing, logistics, production line management, etc..
2. Advantage:
Employed IMPINJ R2000 RF Chips, up to -82dbm receiving sensitivity and the highest performance in this field make this module more suitable for harsh application environment.
Remarkable performance, can achieve a reading distance over 8m for single tag reading with 8dbi RF antenna.
Remarkable performance in intensive taps reading can attain a tags identification rate of 400tags/s.
Provide the most comprehensive functions SDK and ports, easy to integrate RFID software.
Adopted integrating RF chip, module performance is more stable, and more suitable for harsh application environment.
The use of carrier wave cancellation technology makes the tags reading more accurate and reading scope wider.
Provide four TNC antennae interfaces, users can achieve superior reading performance with less equipment deployment.
Enhanced noise suppression function for reliable data capturing.
High precision return signal strength (RSSI).
Excellent performance of anti-interference and lightning-proof design.
Aluninium alloy enclosure, rugged and durable, remarkable performance of heat dissipation.
Aesthetic appearance, easy to install.
3. Performance Parameters:
| NO. | Name | Parameters |
| 1 | Working Voltage | DC +12V |
| 2 | Working Temperature | -25~+65℃ |
| 3 | Operating Humidity | ≤95%(+25℃) |
| 4 | Storage Temperature | -40~+80℃ |
| 5 | Tag Protocol | EPC global UHF Class 1 Gen 2 / ISO 18000-6C |
| 6 | Working Frequency | 840~960 MHz |
| 7 | Supporting Working Area | China 1, China 2, US, Canada and other regions following U.S. FCC, Europe and other regions following ETSI EN 302,208 with & without LBT regulations ,Japan, Korea, Malaysia, Taiwan |
| 8 | Output Power | Software adjustable,step interval 1.0dB, maximum +30dBm |
| 9 | Output Power Flatness | ±0.2dBm |
| 10 | Receiving Sensitivity | -82dBm |
| 11 | RF Port Standing Wave | ≤1.5 |
| 12 | Reading Distance | ≥10m(with 8dBi antenna) |
| 13 | Multi-tags Reading | ≥400tags/s |
| 14 | Interface Communication Rate | 115200bps |
| 15 | Working Temprature Detection | Support |
| 16 | Intensive Read/Write Mode DRM | Support |
| 17 | Antenna Connection Protection | Support |
| 18 | RSSI | Support |
| 19 | Antennae Interface | Four(TNC) |
| 20 | Communication Port | USB(A Female),RS485,RS232(DB-9)and RJ45(100M Ethernet port) |
| 21 | Buzzer | Yes |
| 22 | Enclosure | aluminum alloy enclosure |
| 23 | Dimension | 23.50*18.5*4.3CM |
| 24 | LED indicator light | Red LED for power light |
| Green LED for the status indication |
4. Interface Definition:
| Pin NO. | Name | Description |
| 1 | 485-B | RS485 B |
| 2 | 485-A | RS485 A |
| 3 | EN_OUT | Model Power Enable |
| 4 | GND | Ground |
| 5 | GPIO1 | Input |
| 6 | GPIN2 | Input |
| 7 | GND | Ground |
| 8 | GND | Ground |
| 9 | +5V | DC +5V Out Put |
| 10 | +5V | DC +5V Out Put |
